| LIGHTING FEATURES |
| LED source efficacy | 190lm/w |
| Color temperature | 4000K |
| Minimum CRI (color rendering index) | 75 |
| LED useful lifetime | > 50000 hours |
| Optic | Asymmetric for street lighting |
| Photometric classification CIE 1965 | |
| Semi Cut-off |
| ELECTRICAL FEATURES |
| Power supply | 12¸24 VDC |
| | 3 conductors (+VDC, -VDC, DIM) IP68 connector with cable: |
| Connection | max section 4mmq max total diameter 13,5mm |
| Luminous flux reduction | Automatic or controlled from Western CO PV charge regulator |
| Luminous flux reduction value | -30% |
| LED thermal protecion | Control of heatsink temperature |
Specifications:

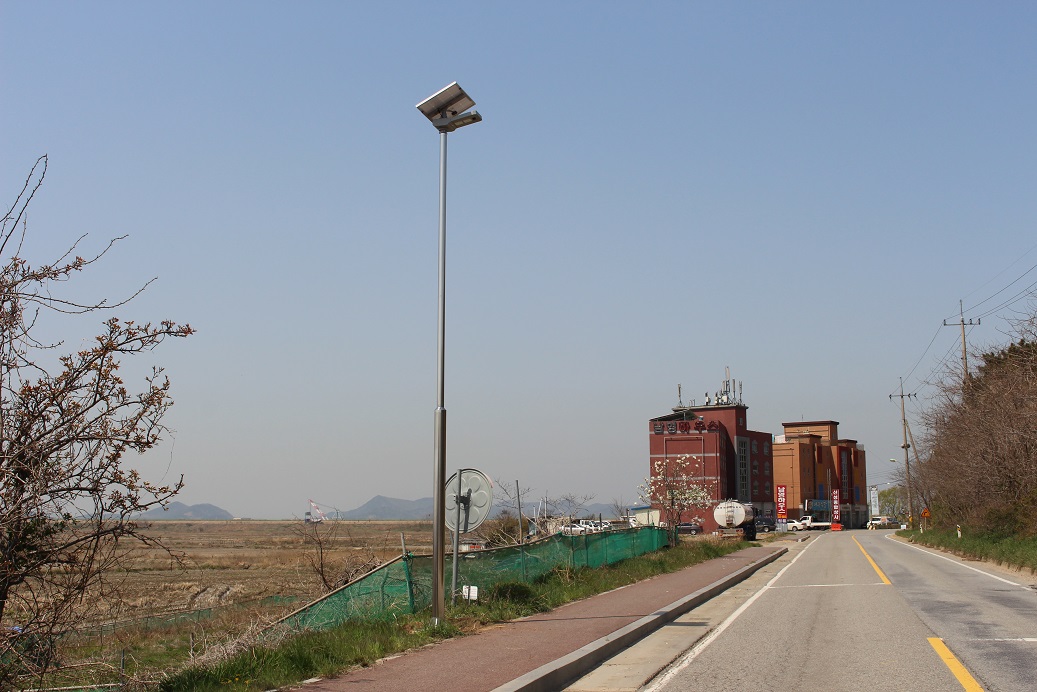

1.Solar panel, batteries, controller and LED lamp are integrated into one body.
2.From the view of the ground, it looks the same as ordinary light.Direction of solar panel can be adjusted without influence on lighting angle of LED lamp or vice versa.
3.LED lamp can be controlled through time-delay, and also can work at half power.
4.Applicable to the existing poles or new poles with height 3-10M, and pipe diameter<76mm.
5.It can be designed to be powered by public electricity when it runs out of electricity stored in batteries, which will lengthen its working time at night. (This function is for buyer'option)
6.Water-proof and dust-proof (IP 65).
Features
1. Special heat dissipation design and professional thermal management.
2. Good quality with CE ROHS certificate.
3. Anti-shock, anti-hit.
4. High brightness and long life, more than 50,000hours
5. Low power consumption, compared with the traditional Metal halide lamp, can save 70% energy
6. Tempered glass cover,No danger of broken glass,Good Light transmittance.
7. In order to meet the different irradiation angles,light direction can be adjusted.
8. Use high-quality silicone gaskets, high performance waterproof.
9. Finished with epoxy powder paint, resistant to corrosion,no fading.
10. Wide beam angle, huge lighting area.
